3rd Gen Protege/MazdaSpeed/P5/MP3 General/Maintenance Discussion for 1999-2003.5 Models Only (BJ Chassis)

PR5 Fogs need help

Thread Tools

Search this Thread

Old December-9th-2001, 08:00 PM
  #1
Protege Enthusiast
Thread Starter

20FS's Avatar

Join Date: Dec 2001
Location: Calgary, AB
Posts: 160
20FS is on a distinguished road
PR5 Fogs need help

how the hell do i take these out to change the bulb? and can i aim them up a little because right now they point down too far and doesn't really light up anything i can see
20FS is offline
Old December-9th-2001, 08:02 PM
  #2
Protege Enthusiast
Thread Starter

20FS's Avatar

Join Date: Dec 2001
Location: Calgary, AB
Posts: 160
20FS is on a distinguished road

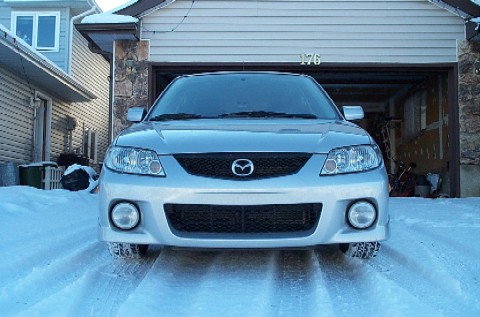

Attached Thumbnails PR5 Fogs need help-dcp_0245.jpg
20FS is offline
Old December-9th-2001, 08:11 PM
  #3
JJB
Protege Owner

JJB's Avatar

Join Date: Oct 2001
Posts: 731
JJB is on a distinguished road
there is some info in the following thread:

http://www.protegeclub.com/forum/sho...=&threadid=519
JJB is offline
Old December-9th-2001, 09:34 PM
  #4
1phtwagn
Guest

Posts: n/a
It's not too hard, as all the other posts say. Just take your time. Put it on ramps, unscrew the 3 philips screws holding the plastic shield on under the car and hold it out of the way. The main nut on the back is a 15mm I believe. I adjusted mine this morning and I can't remember. Then loosen the two nuts on the side to adjust it. once you get one done, mark the beam location on a 2x4 or something so that when you do the other one, you have a reference since it'll be hard to tell with the car on ramps. The stock bulbs are 24 watt (contrary to what the other guys said) and they are plenty bright enough right now. I wouldn't go any bigger than 55 if you change them out. Good luck.

Old December-10th-2001, 11:24 PM
  #5
Registered User

nightowl's Avatar

Join Date: Oct 2001
Location: ottawa, ontario canada
Posts: 1,030
nightowl is on a distinguished road
ya they are 24 watt, i had some 55watt blubs put in my fogs and so far no problems
nightowl is offline
