CEL codes P0171 and P0440
October-21st-2005, 03:34 PM
#17
I can has autox now?
Join Date: Nov 2004
Location: ASC, GA
Posts: 3,381
HAHA, no, i traded my lx for a msp
- then wrecked it, then bought another msp... (1st was 03.5, current is 03 - got pictures of my poor '03.5 somewhere. i know they are on my.prostreetonline.com/member/Jackelope
- then wrecked it, then bought another msp... (1st was 03.5, current is 03 - got pictures of my poor '03.5 somewhere. i know they are on my.prostreetonline.com/member/Jackelope
October-22nd-2005, 01:12 PM
#18
Registered User
Thread Starter
Join Date: Oct 2005
Posts: 33
Alright, I looked around under the hood and found a couple of things that I want to ask about. I made photo's so you can see and be able to help better. Thanks in advance.
I found the housing of the MAF to be cracked on the side where the wires plug in. You can see it in the pic. Also you can see how the wires were cut and reconnected. The other thing I noticed was a short thin rubber hose that was only connected on one side. I'm holding it in one of the pics. The other end goes to a small "thing" where I find another hose that goes from there to a small black plastic can which is just hanging there (by 3 hoses). Also made a pic of that. 3 pics total, please take a look and see if you can help me find where it all needs to go. I really appreciate it.
To show how new I am to these Mazda's... is the P5 the wagon version of the Protegé? What is a 03.5... is that a P5 built in 03? Sorry for the nooby questions.
I found the housing of the MAF to be cracked on the side where the wires plug in. You can see it in the pic. Also you can see how the wires were cut and reconnected. The other thing I noticed was a short thin rubber hose that was only connected on one side. I'm holding it in one of the pics. The other end goes to a small "thing" where I find another hose that goes from there to a small black plastic can which is just hanging there (by 3 hoses). Also made a pic of that. 3 pics total, please take a look and see if you can help me find where it all needs to go. I really appreciate it.
To show how new I am to these Mazda's... is the P5 the wagon version of the Protegé? What is a 03.5... is that a P5 built in 03? Sorry for the nooby questions.
October-22nd-2005, 01:19 PM
#19
Registered User
Thread Starter
Join Date: Oct 2005
Posts: 33
October-22nd-2005, 01:29 PM
#20
Registered User
Thread Starter
Join Date: Oct 2005
Posts: 33
October-22nd-2005, 03:14 PM
#21
Registered User
Join Date: Jun 2005
Location: Clearwater,FL-Countryside
Posts: 220

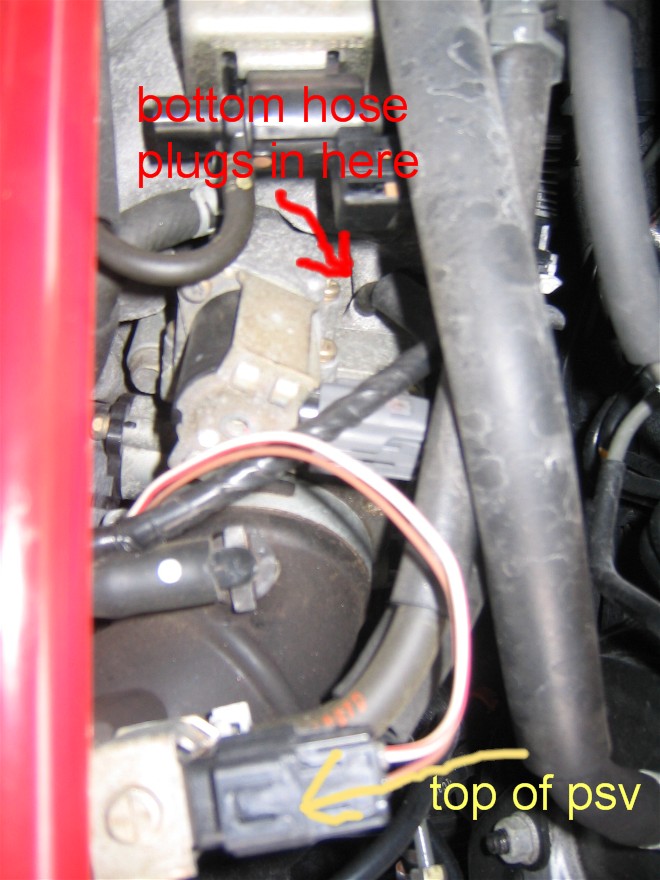

Okay the cadmium plated device with the two hoses is, I believe, the PSV or purge solenoid valve. the black plastic canister with the three hoses is the catch tank for the charcoal canister (itself located back by the fuel tank, I think). The PSV should have the top hose running over to the catch tank and the bottom hose running to a vaccum port on the throttle body.
Last edited by pass the peas; October-22nd-2005 at 03:41 PM.
October-22nd-2005, 03:44 PM
#23
Registered User
Join Date: Jun 2005
Location: Clearwater,FL-Countryside
Posts: 220
Originally Posted by MiltonOS
Thank you! Do you think it could cause CEL to come on? What is it for?
October-22nd-2005, 03:50 PM
#24
Awesome Member
Join Date: Jan 2004
Location: Pittsburgh PA
Posts: 3,186
^^yup. the cracked MAF housing could be the cause of a CEL as well, probably more so than the spliced wires.
BTW, damn, your wheels look familiar! Are they painted or powdercoated?
(Hey Matty, I thought I was unique)...
BTW, damn, your wheels look familiar! Are they painted or powdercoated?
(Hey Matty, I thought I was unique)...
October-22nd-2005, 04:13 PM
#25
Registered User
Thread Starter
Join Date: Oct 2005
Posts: 33
Sweeeeeet. I plugged the hose in, (awesome pic btw, thanks!) started the car and drove it around the block. It really seems smoother than it was earlier today. Great! I didn't reset the codes yet but I'll stop by autozone on monday and buy a code reader. I just don't know where the interface is to hook it up. I know it's near the driver seat/door.
How hard is it to put on a CAI? I mean does the MAF stay? Does a new one come with a CAI? I was thinking I could get a CAI instead of hunting for stock parts. Thank you too kargoboy!
How hard is it to put on a CAI? I mean does the MAF stay? Does a new one come with a CAI? I was thinking I could get a CAI instead of hunting for stock parts. Thank you too kargoboy!
October-22nd-2005, 04:15 PM
#26
Registered User
Thread Starter
Join Date: Oct 2005
Posts: 33
Oh and the wheels.... they are the stock Mazda rims. Previous owner must have painted them black. Paint is chipping in some places so I'll have to redo it. I don't know who does powdercoating around here though..
October-22nd-2005, 06:53 PM
#27
Awesome Member
Join Date: Jan 2004
Location: Pittsburgh PA
Posts: 3,186
Originally Posted by MiltonOS
Sweeeeeet. I plugged the hose in, (awesome pic btw, thanks!) started the car and drove it around the block. It really seems smoother than it was earlier today. Great! I didn't reset the codes yet but I'll stop by autozone on monday and buy a code reader. I just don't know where the interface is to hook it up. I know it's near the driver seat/door.
How hard is it to put on a CAI? I mean does the MAF stay? Does a new one come with a CAI? I was thinking I could get a CAI instead of hunting for stock parts. Thank you too kargoboy!
How hard is it to put on a CAI? I mean does the MAF stay? Does a new one come with a CAI? I was thinking I could get a CAI instead of hunting for stock parts. Thank you too kargoboy!
take it to AutoZone again. Unplug negative battery cable, press the brake pedal for about 10 sec and reconnect.
CAI/SRI installation is very easy, even I did it in about 45 minutes and I'm not exactly a mechanical genius by any means.
As for my wheels, I guess I'm not the only silver ES with black stock rims! Roddimus Prime (Matty) powdercoated mine but I arranged shipping to/from Alabama from PA...I don't recall you mentioning where you are from.
Last edited by kargoboy; October-22nd-2005 at 06:56 PM.
October-22nd-2005, 09:11 PM
#28
Registered User
Thread Starter
Join Date: Oct 2005
Posts: 33
I'll try that tomorrow then. Haven't really programmed my radio channels anyway lol. I'll let you know what happens. Usually it takes a day to come back on so I'll have to drive it a bit.
My car is a little off silver. More like titanium. But it's close. Is powder coating such a big deal that you had to ship it off?
My car is a little off silver. More like titanium. But it's close
. Is powder coating such a big deal that you had to ship it off?
October-24th-2005, 07:29 AM
#29
Registered User
Thread Starter
Join Date: Oct 2005
Posts: 33
Well, I reset the ECU yesterday like kargoboy said and the CEL hasn't come back on. I drove it quite a bit yesterday and into work this morning which is about 20 miles through rain. Car runs real nice. Thank you all!
Thank you all!
October-24th-2005, 10:39 AM
#30
Awesome Member
Join Date: Jan 2004
Location: Pittsburgh PA
Posts: 3,186
Originally Posted by MiltonOS
I'll try that tomorrow then. Haven't really programmed my radio channels anyway lol. I'll let you know what happens. Usually it takes a day to come back on so I'll have to drive it a bit.
My car is a little off silver. More like titanium. But it's close. Is powder coating such a big deal that you had to ship it off?
My car is a little off silver. More like titanium. But it's close
. Is powder coating such a big deal that you had to ship it off?
