Mkay, I understand how to install the actual strut bar & brackets but I am just
not getting the cruise control assembly.
Anyone have a nice close-up of how theirs looks? I already searched the how-tos on both forums & didn't find one.



how about this? http://flickr.com/photo_zoom.gne?id=1460520910&size=o

I have a gigantic version of the pic available (that's a 2 megapixel rendering, it's an 8 megapixel photo)



Thanks! That's the way I had the parts lined up. The only thing I can't really figure out is how to install the 'extra' bracket piece.
You pic helps, I will take a closer look.



I can take a really close pic too Gary. Gimme a sec ok?

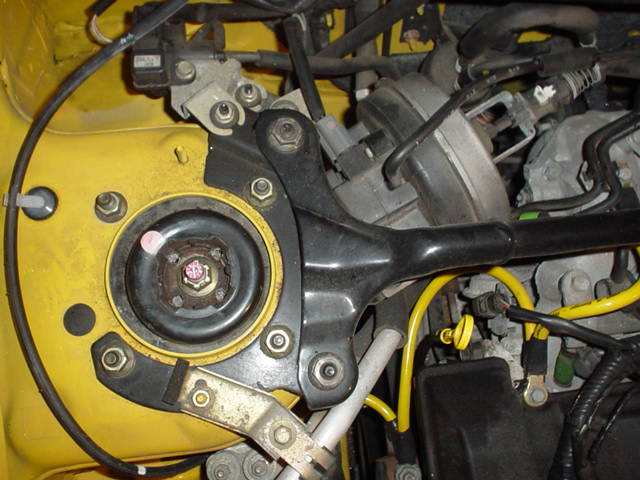

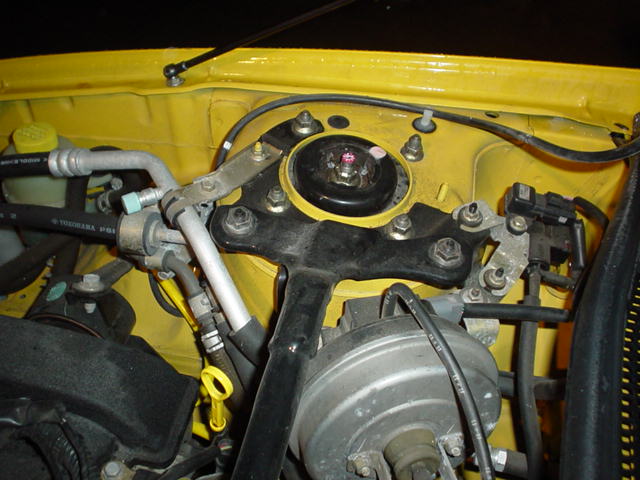

Alright here we go. Sorry if they're too dark but it's starting to rain here and I think we might get a tornado here shortly cuz it got REALLY dark all of a sudden. Anyway, I hope these help.



Cool, these will help when I get my bar in as well!



i have the actual mazda accessory installation instructions, but this forum limits me from posting the whole thing. (file size, or something) send me a pm with your email, and i'll send it over.



^ What kind of file is it? PDF, JPEG, etc.? I might be able to shrink it .. cuz that would be pretty useful info to have on here.



Thanks for the pics KFox...too bad the P5 already had the strut bar stock. I have to modify the cruise with a bracket, so it looks a little different.

Nik you have a PM



Ok I figured it out. Y is the average of u and t, so a Stry bar is the same as a strut bar.

Alright, back as you were

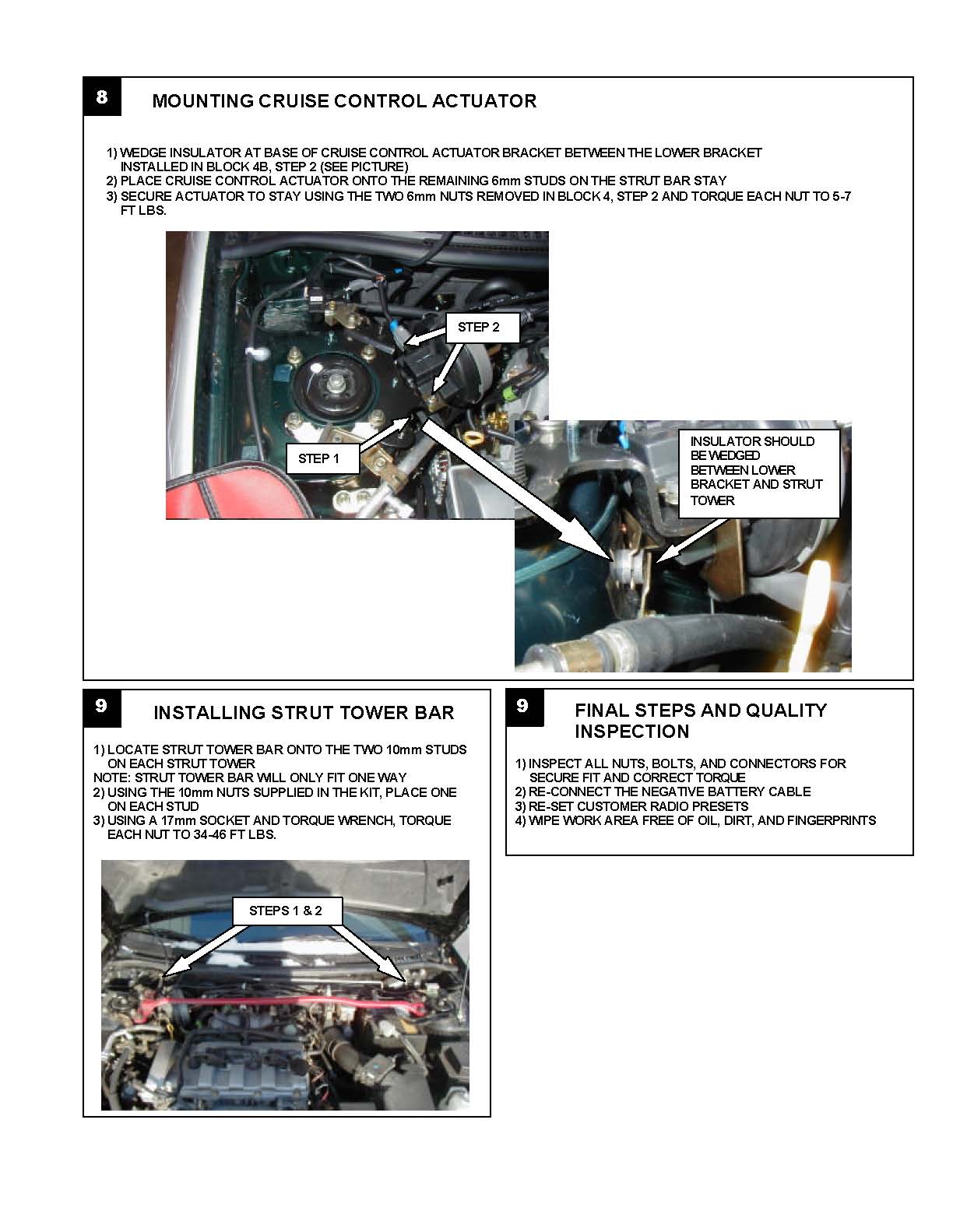

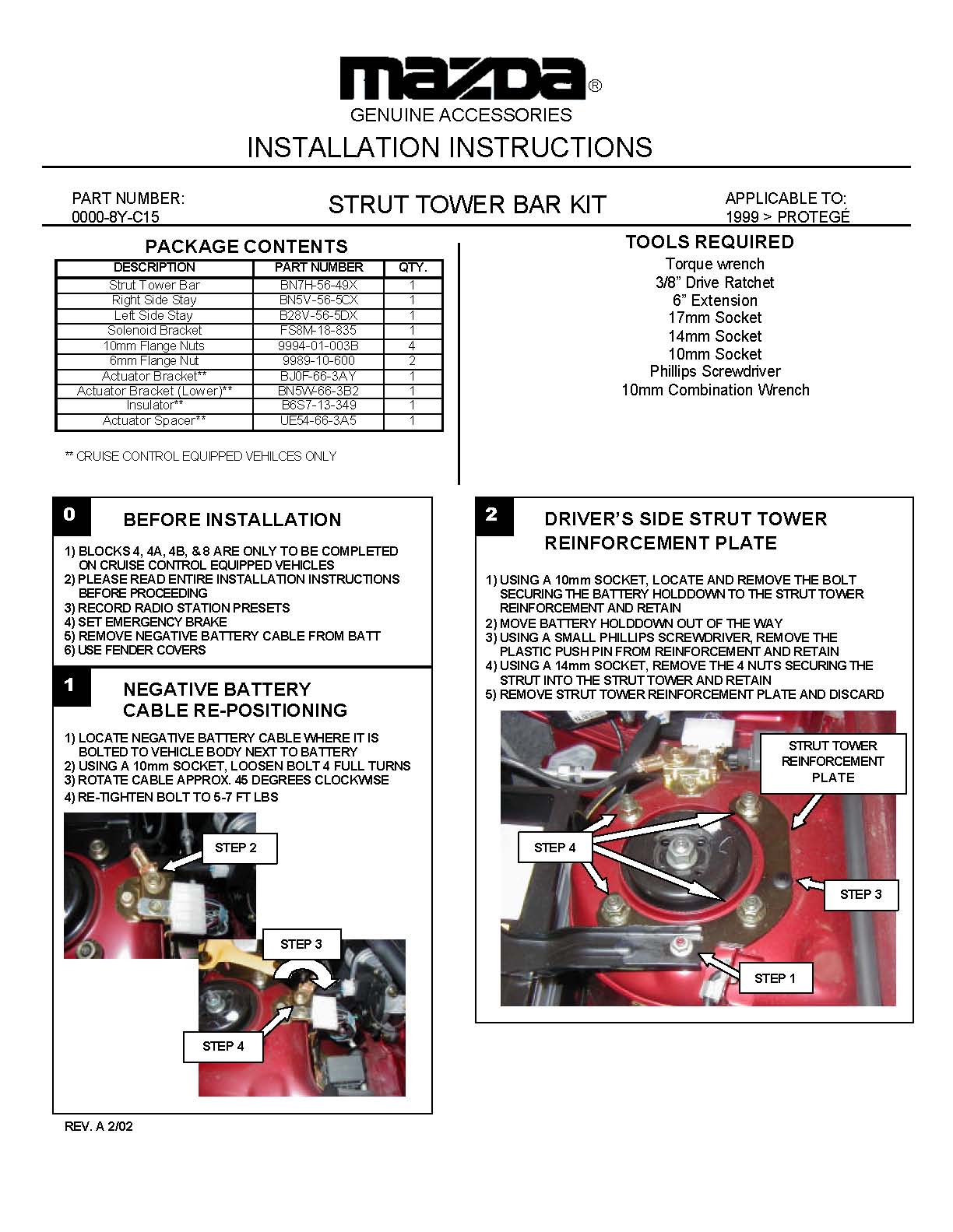

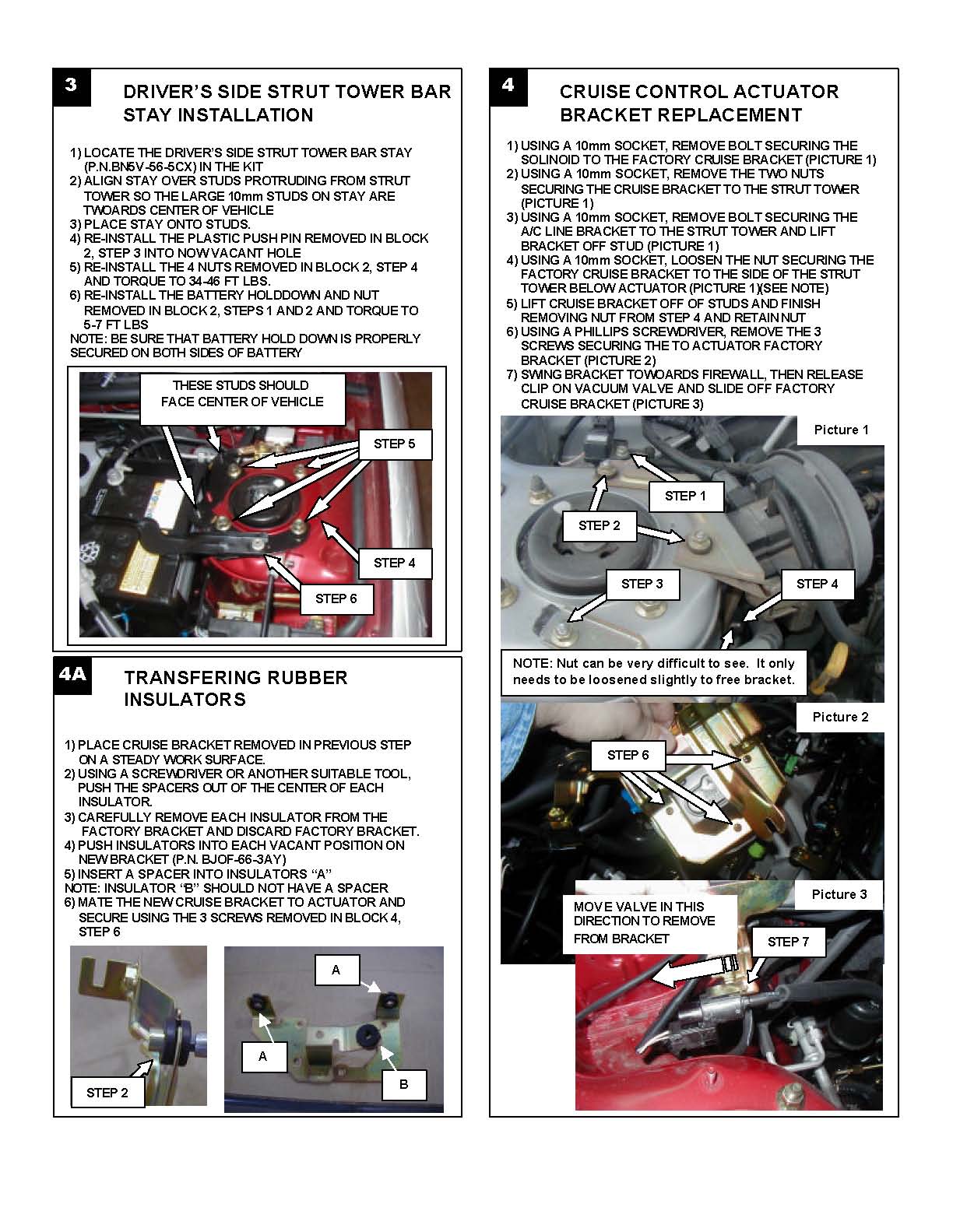

its a pdf, and now its a jpeg attached to this post - go tit to work



+1 mate



Lol!



Some of us need to postwhore so quickly that we can't bother typing two letters when one would suffice.

I'll admit, I wasn't 100% sure what the thread was about when it started :P



I thought it was the Front SWAY bar when I first glanced at it .. so I immediately thought "Oh **** .. good luck Gary"
